Modular LED System
Hexagon & Linear
LED Lighting
One 1.2 m aluminium light bar and six clip-on connectors. Build a single hexagon, a full honeycomb, a grid or one long line, in any size your ceiling allows.
Patterns You Can Build
One bar, any shape
Every layout here is built from the same 1.2 m bar. Change the joints and it becomes a single hexagon over a desk, a honeycomb across a garage, a zig-zag down a corridor or a clean grid over an office. Scale any of them up by adding cells.
- 1.2 m bar
- 120° corner
- Y junction
- 90° corner
- Straight joint
- T junction
- Cross
Single hexagon
The simplest shape: six bars and six corners. Good over a desk, mirror or car bonnet.
- Light bars6 (7.2 m)
- 120° corner6
EstimateKES 6,540
Three-hexagon cluster
Three hexagons sharing edges. Y connectors appear where three bars meet.
- Light bars15 (18 m)
- 120° corner9
- Y junction4
EstimateKES 16,150
Honeycomb
A centre hexagon ringed by six more. The classic garage and barbershop ceiling.
- Light bars30 (36 m)
- 120° corner12
- Y junction12
EstimateKES 32,100
Zig-zag
Bars alternating at 120° for corridors, feature walls and bar backs.
- Light bars6 (7.2 m)
- 120° corner5
EstimateKES 6,340
Rectangle frame
A frame of light around a ceiling panel, bed or workbench.
- Light bars6 (7.2 m)
- 90° corner4
- Straight joint2
EstimateKES 6,540
Grid
A 2 x 2 grid with T junctions on the edges and a cross in the middle.
- Light bars12 (14.4 m)
- 90° corner4
- T junction4
- Cross1
EstimateKES 12,930
Estimates cover bars and connectors only, at the current listed prices. Add a mains lead and either clips or a hanging kit (see below). Mounting and the mains connection are done by your electrician.
The Components
Four parts make every pattern
The bar gives the light, the joints set the shape, one lead connects it straight to the mains, and clips or wires hold it all up.

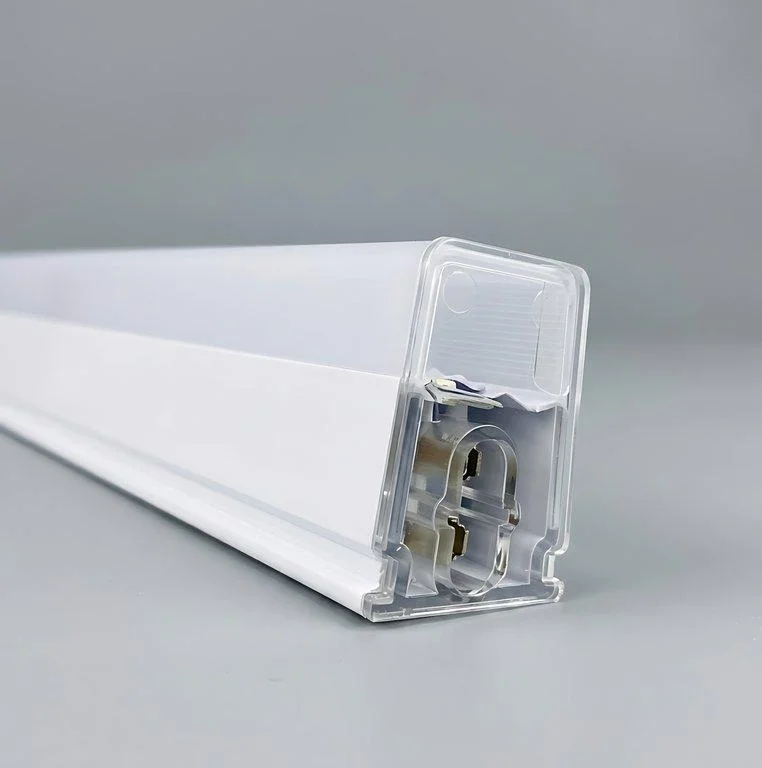

01 · The Bar
The building block
Every pattern is made from the same bar. Its ends plug into the connectors, which set the angle and carry power on to the next bar, so a whole pattern can be fed from one mains connection.
Length
1.2 m per bar
Power
16 W, AC 85-265 V
Colour
6500K cool white
Housing
Aluminium, for heat dissipation
From KES 890 per bar
02 · The Joints
Six joints, endless patterns
Clear housings with brass contacts clip onto the bar ends. The joint sets the angle, and the colour dot on each card matches the joints in the pattern diagrams.

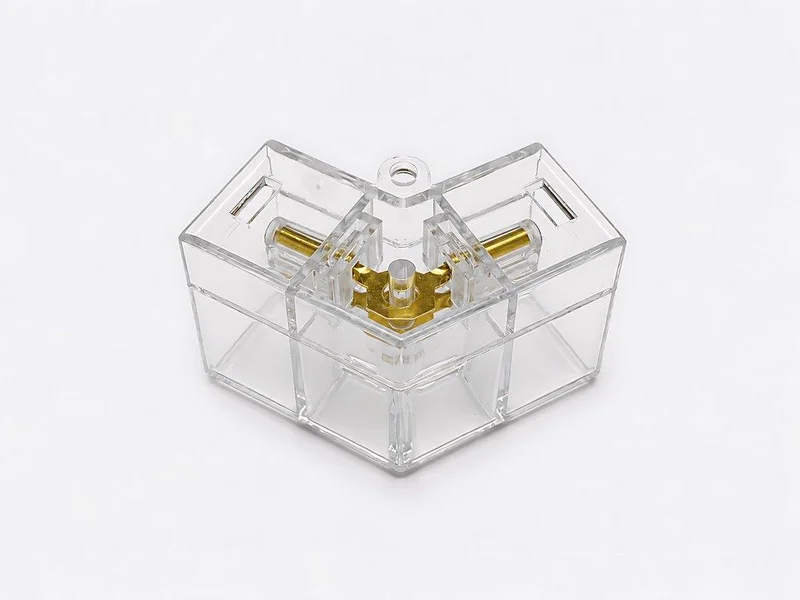

120° Two-Way Connector
The corner of every hexagon. Two bars meet at 120°.
KES 200Shop →

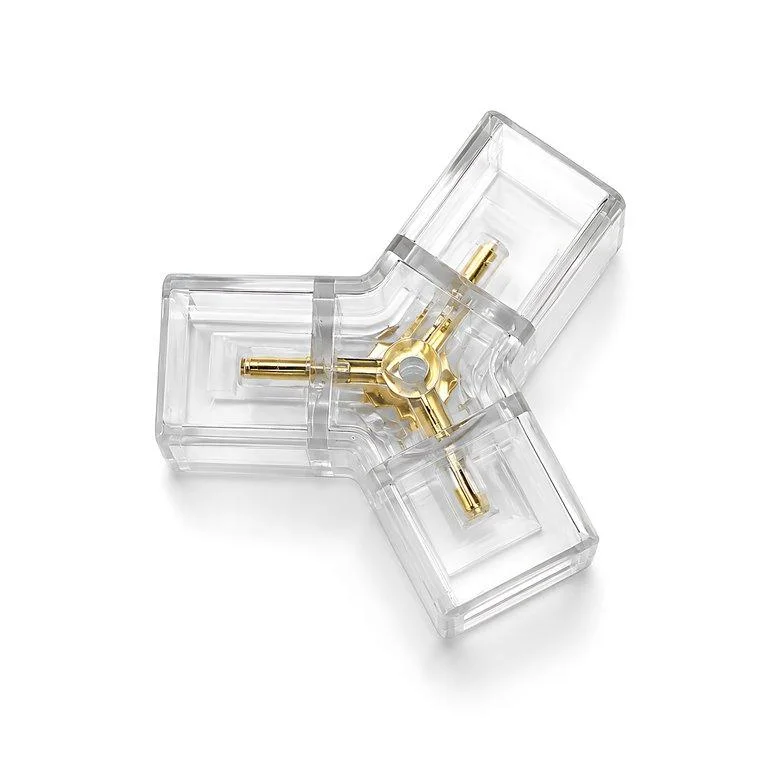

120° Y Connector
Where three hexagons meet in a honeycomb. Three bars at 120°.
KES 250Shop →

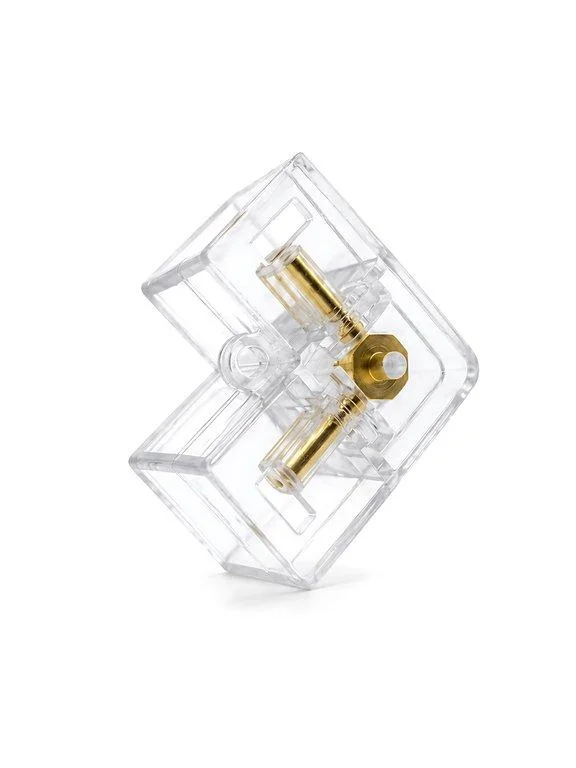

90° Two-Way Connector
Square corners for frames, rectangles and grids.
KES 200Shop →

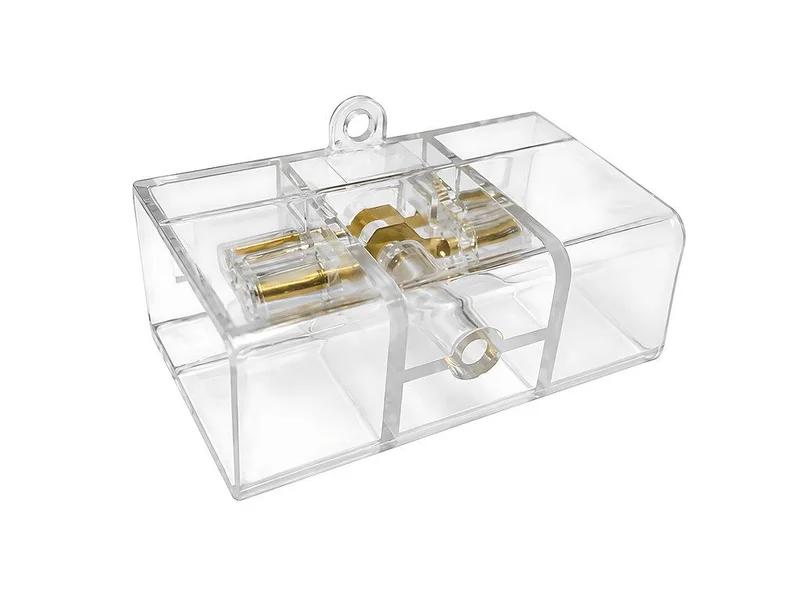

180° Two-Way Connector
Joins bars end to end into one long, unbroken line.
KES 200Shop →

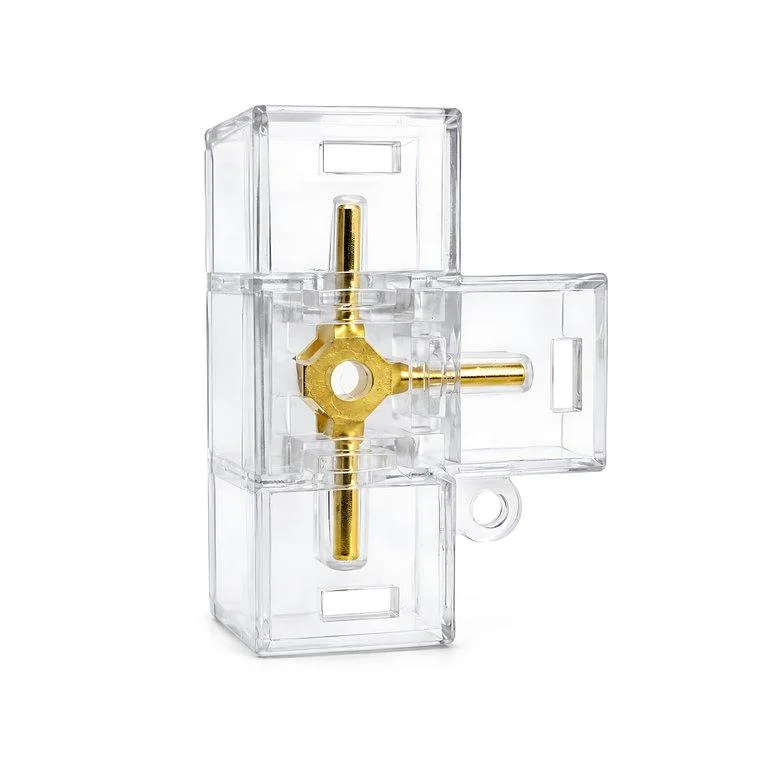

T Connector
A branch off a straight run, for grid edges and ladders.
KES 300Shop →

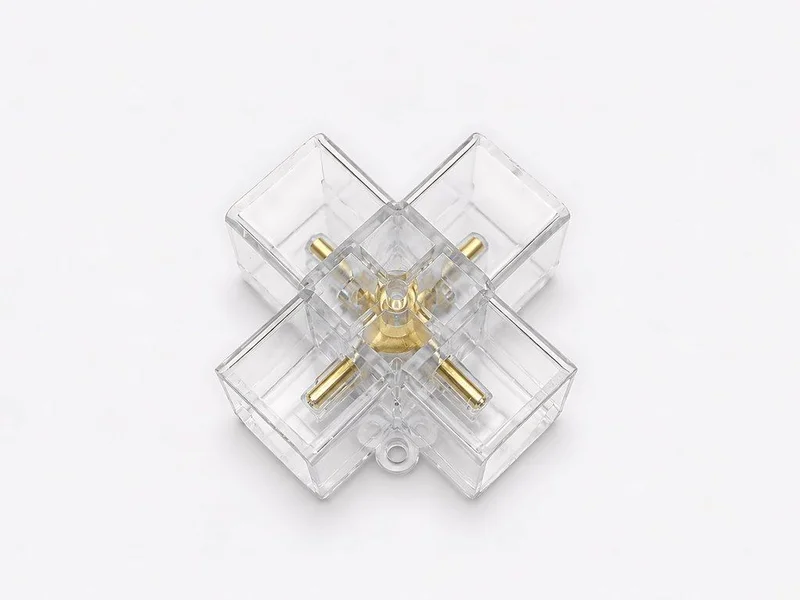

Cross Connector
Four bars meet at right angles, in the middle of a grid.
KES 250Shop →

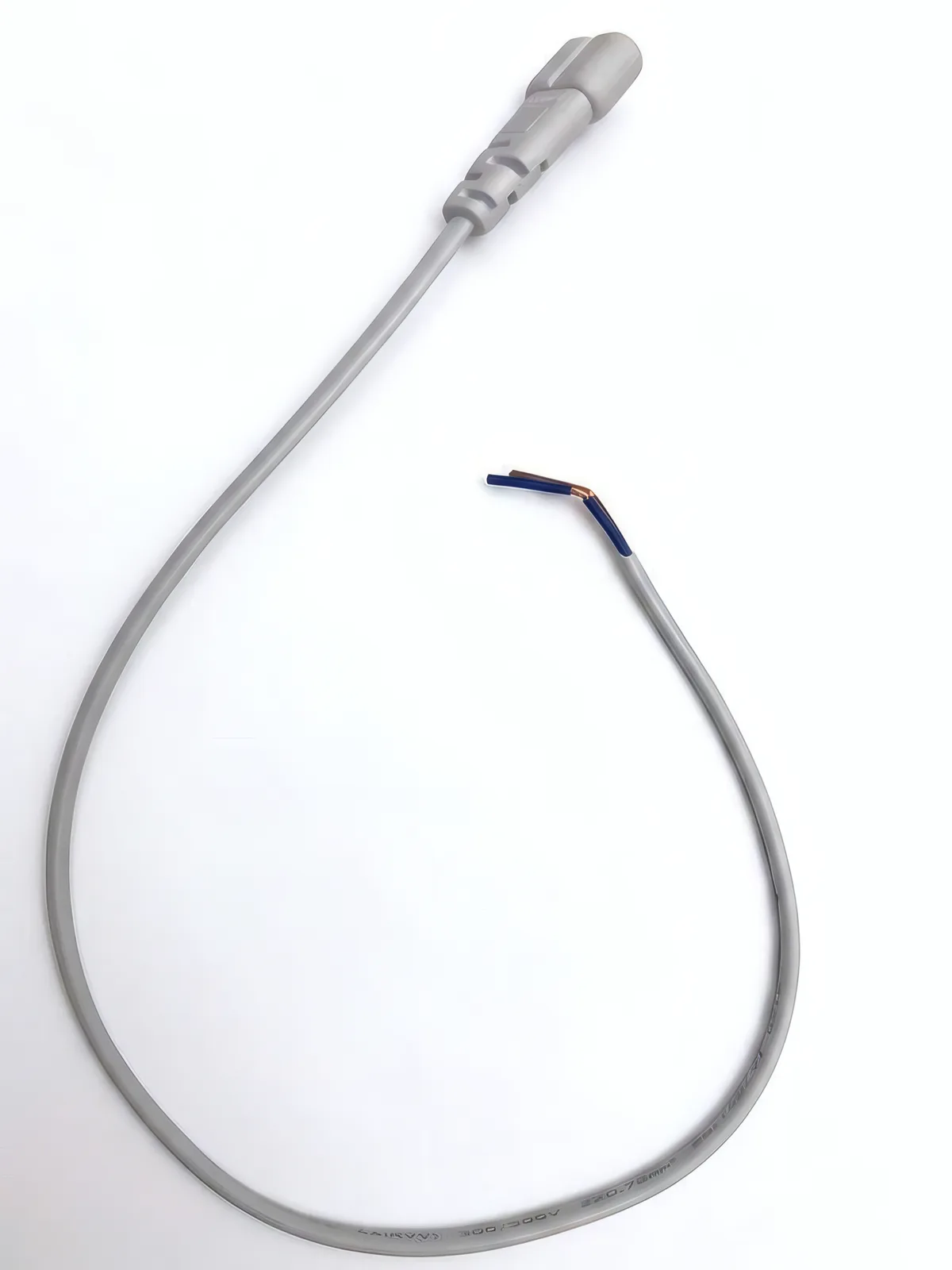

03 · Mains Lead
Straight to the mains, no power supply
The bars plug straight into mains power (AC 85-265 V). There is no power supply or driver to buy or hide in the ceiling. A plug and wire lead clicks into the system at one end and your electrician wires the other to the ceiling power point. From there the connectors pass power through the whole pattern.
PVC-sheathed copper, rated 300/500 V. One lead per pattern; for very large layouts we will tell you if it needs a second feed.
04 · Suspension
Flush, or floating below the ceiling
Fix the pattern tight to the ceiling with clips, or hang it on steel wires for high ceilings and a pattern that seems to float.
Flush to the ceiling

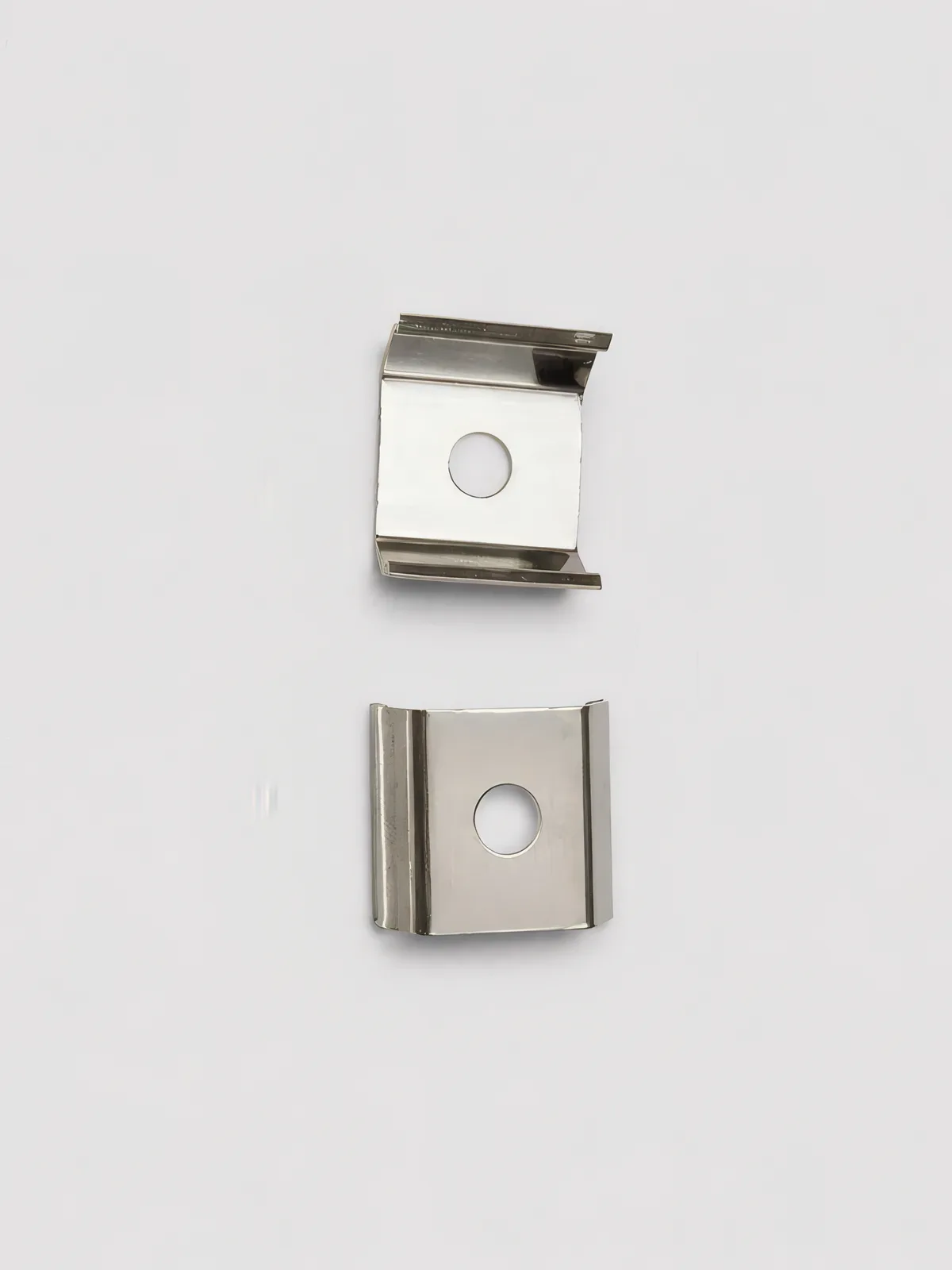

T Clips
Aluminium brackets that grip the sides of the bar and screw to the ceiling, so the pattern sits tight against it. The right choice for standard-height rooms.
KES 50 per pairShop →
Suspended

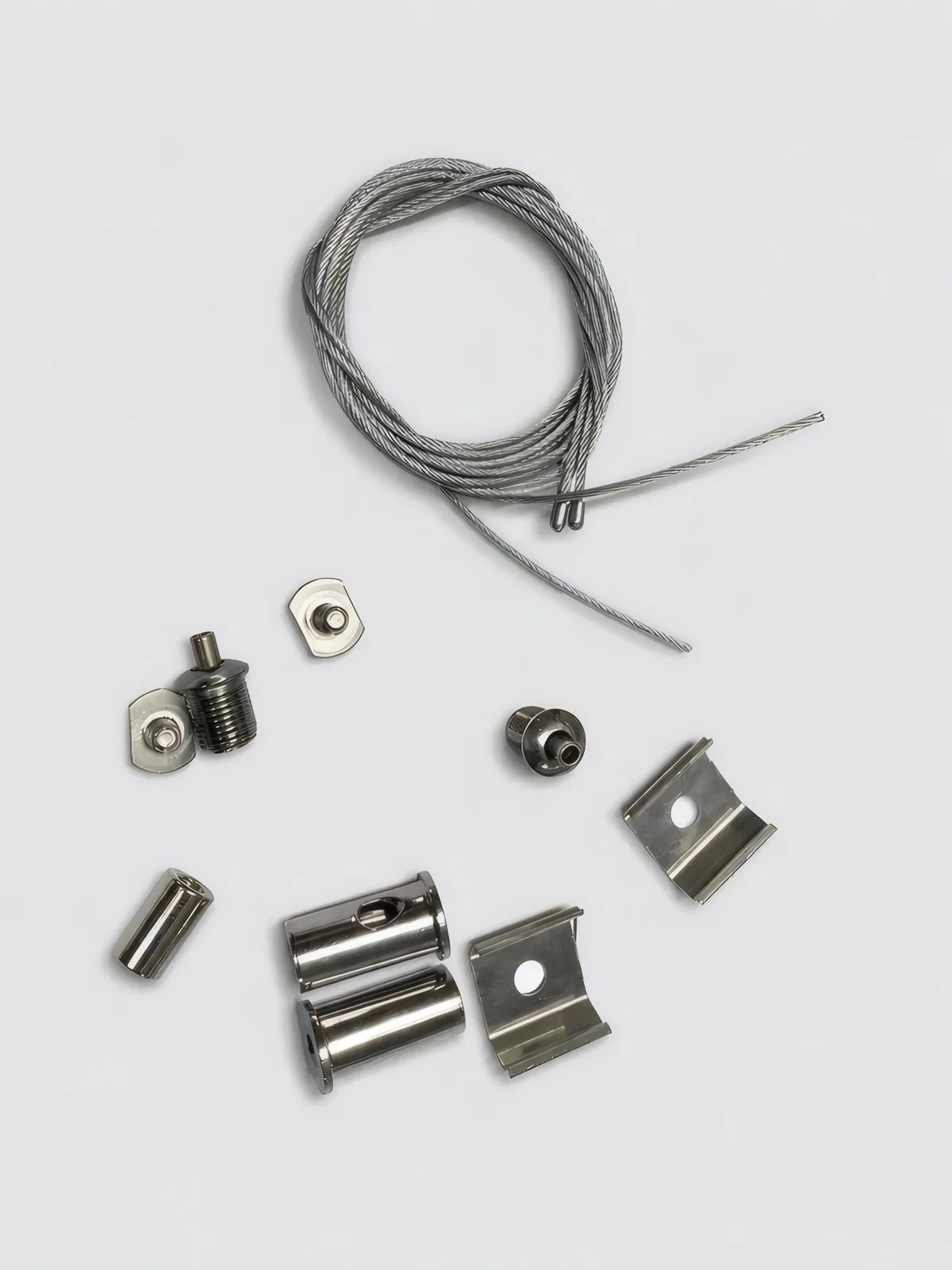

T Hanging Wire Kit
Stainless steel wire rope, ceiling clips, tensioners and screws to hang the pattern at the height you choose. Brings the light down in garages, showrooms and double-volume rooms, and makes the pattern look like it floats.
KES 380 per kitShop →
The number of clips or hanging points depends on the pattern and ceiling. We include the count in your layout and quote.
Where It Works
Made for spaces people photograph

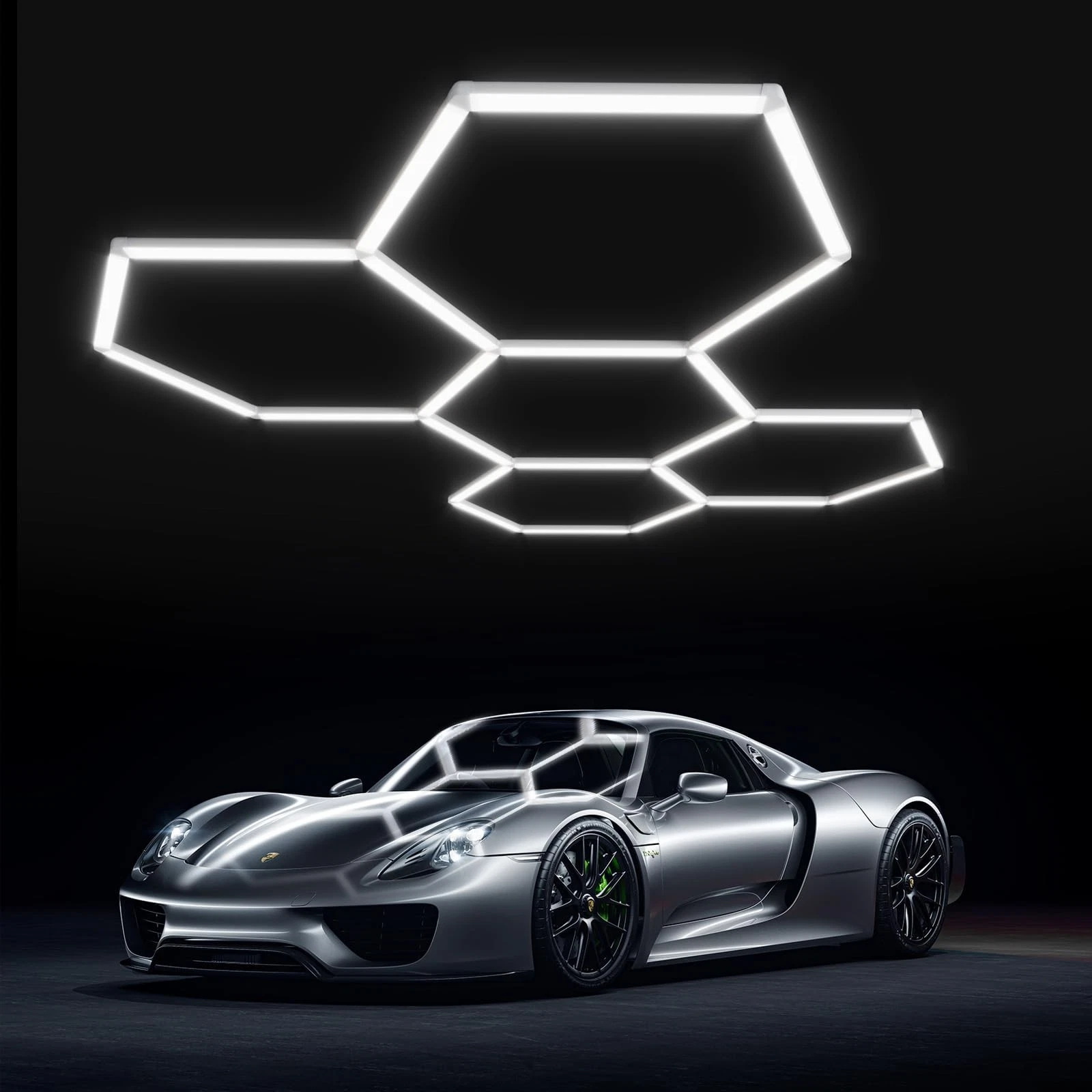

Garages & detailing bays
Shadow-free light over the whole car, so paint, dents and swirl marks are easy to see.

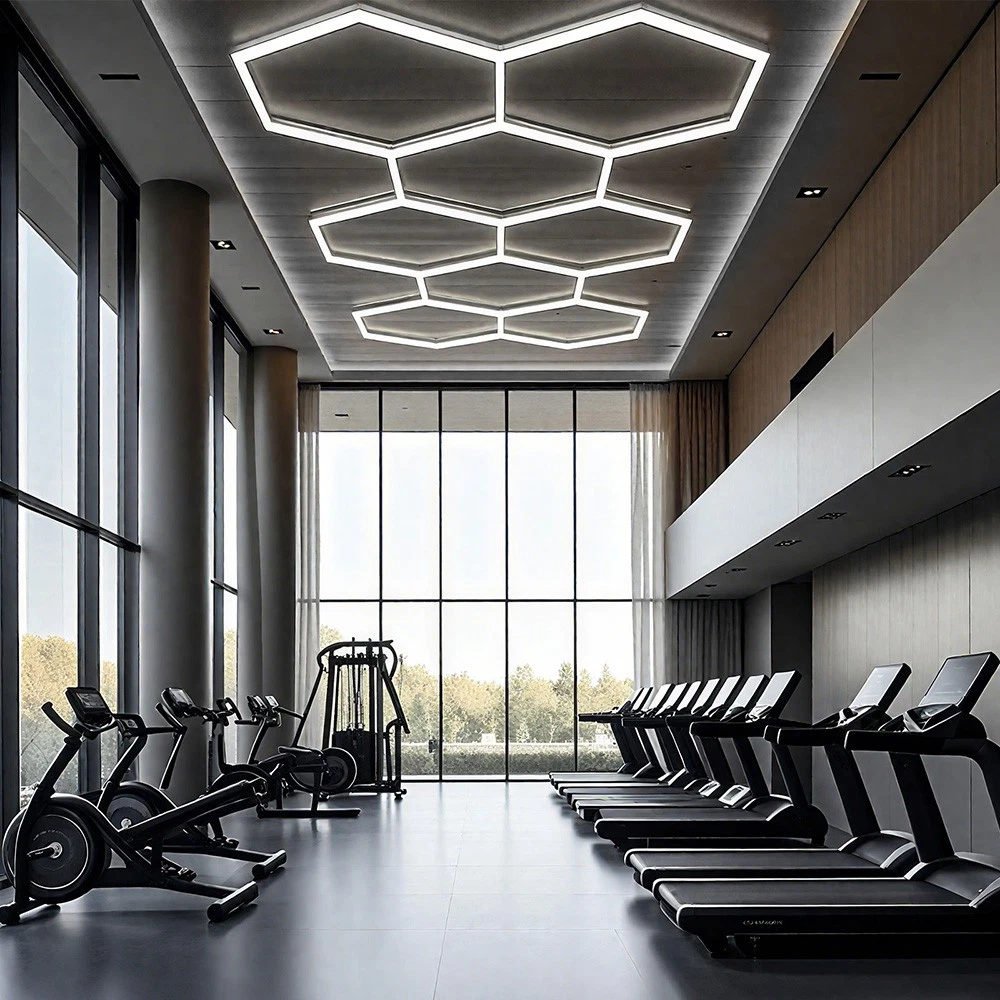

Gyms & studios
Bright, even light over the whole floor, with a ceiling that gives the space energy.

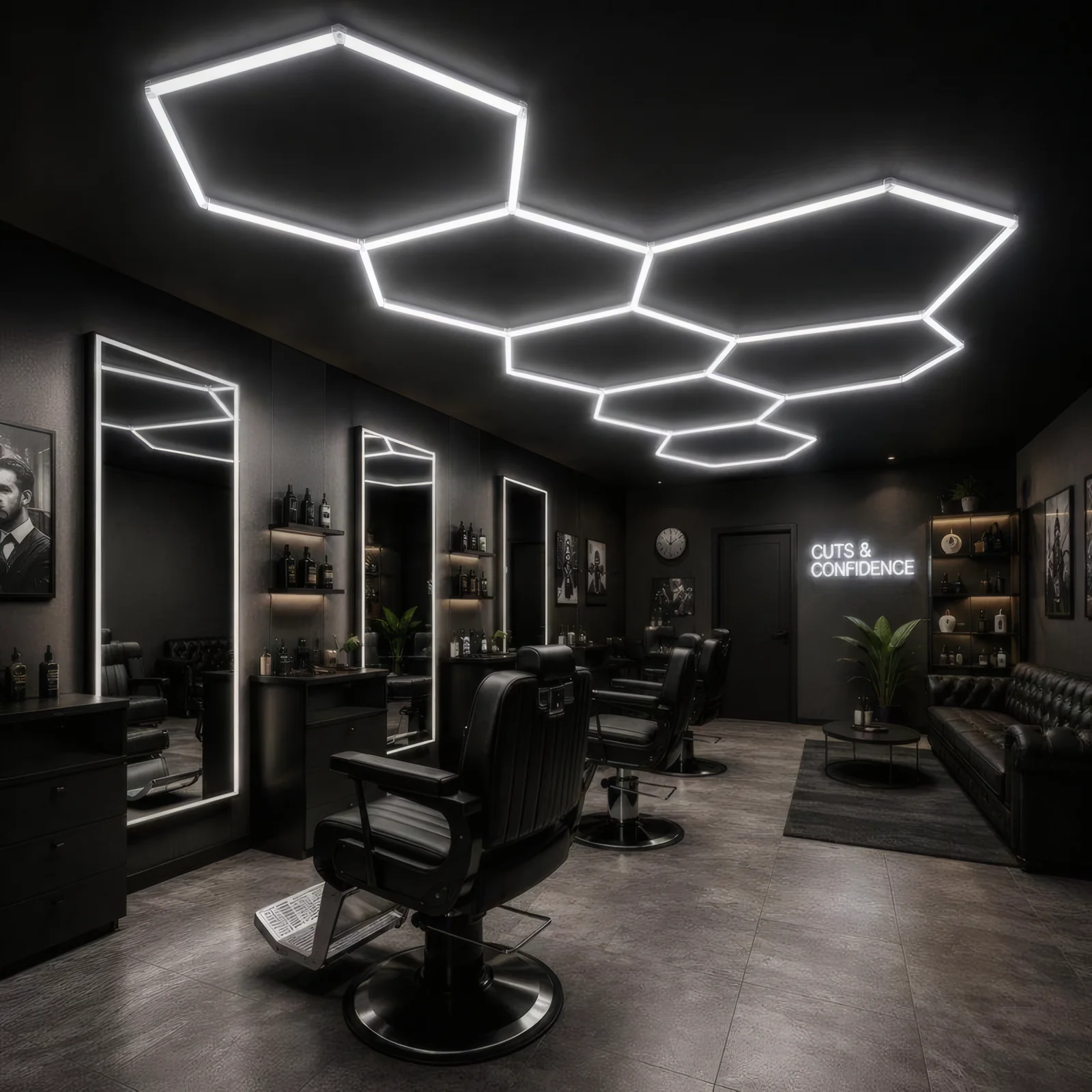

Barbershops & salons
A signature ceiling that gives even light at every chair and looks great in photos.

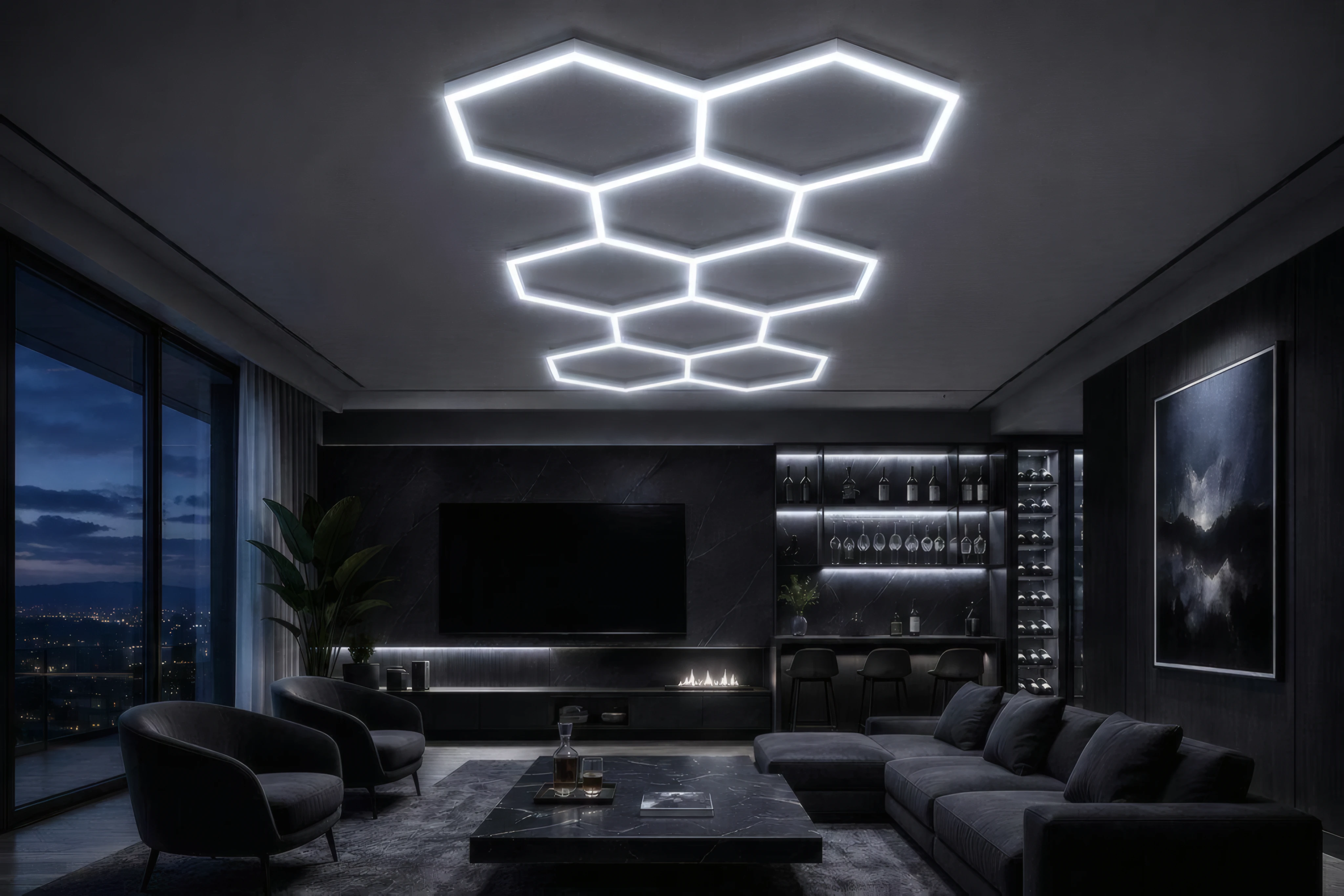

Living & entertainment rooms
A bold statement over a lounge, games room or home cinema.
Common Questions
Hexagon & linear LED FAQ
Every bar is 1.2 m long. A single hexagon is about 2.4 m from corner to corner, and the seven-cell honeycomb covers roughly 6 m by 6.2 m. Send us your room size and we will scale the pattern to fit.
No. The bars plug straight into mains power (AC 85-265 V), with no power supply or driver. A plug and wire lead connects the pattern to a ceiling power point, and the connectors carry power on from bar to bar.
A typical pattern runs from one power point. For very large layouts we may split it into more than one feed, and we will tell you when we lay it out.
Yes. Use the T Hanging Wire kit to suspend the pattern at any height, which works well under high ceilings in garages, showrooms and double-volume rooms. For a flush finish, fix the bars with T Clips instead.
Yes, the system is modular. Add bars to an outside edge and swap the corner connectors where the new cell joins for Y connectors. Tell us your current layout and we will list the extra parts.
The bar is 6500K cool white, close to daylight. That makes paint defects, colours and detail easy to see, which is why it is popular in garages, detailing bays, barbershops and gyms.
We supply the parts and work out the layout and parts list for your ceiling. Mounting and the mains connection are done by your electrician.
Yes. Nairobi orders go out with a local courier, and other counties ship via G4S or Wells Fargo courier. Delivery is charged separately and confirmed with your quote.
Send us your ceiling size
Tell us the room's length and width and the pattern you like. We will lay it out to fit, count the bars and connectors, and send a quote.
